I-Industrial pump pump motor KW isivikeli esishisayo

I-Industrial pump pump motor KW isivikeli esishisayo

1. Izici zomvikeli oshisayo

I-KW series isivikeli esishisayo iwumkhiqizo onezici zokuzwa izinga lokushisa. Umkhiqizo unezici zesakhiwo esithuthukisiwe, usayizi omncane, isenzo esibucayi, umthamo omkhulu wokushaqeka kagesi nokuphila isikhathi eside.

I-Conductor: i-copper core wire efakwe ngothayela, isendlalelo sokufakelwa senziwe nge-polyethylene impahla, impahla ye-silicone, enomqhubi oqinisekisiwe we-UL; .

Igobolondo: Igobolondo lepulasitiki lobunjiniyela be-PBT noma igobolondo lensimbi eline-nickel ne-zinc alloy plating;

Izinto zemikhono: I-PET polyester insulating sleeve noma umkhono wohlobo lwe-PE, ohlangabezana nezidingo zokusebenza kwezinto zikagesi.

Ukuphila: Impilo yomkhiqizo ≥ izikhathi ezingu-10,000

2. Ukusebenza kwesivikeli esishisayo se-KW

Ikalwe okwamanje:	I-VoltageVOLTAGE 12V-DC 24V-DC 120V-AC 250V-AC Yamanje AMANJE 12A 10A 8A 6A 5A
Izinga lokushisa lokusebenza:	60°C-160°C, ukubekezelela ±5°C.
Ukuhlolwa kwe-lead wire tensile:	Intambo eholayo yesivikeli esishisayo kufanele ikwazi ukumelana namandla amakhulu noma alingana no-50N iminithi elingu-1 ngaphandle kokuphuka noma ukuxega.
I-voltage ye-insulation:	a. Isivikeli esishisayo kufanele sikwazi ukumelana ne-AC660V, i-50Hz eshintshashintshayo yamanje phakathi kwezintambo ngemva kokunqanyulwa kwe-thermal, futhi ukuhlola kuthathe i-1min ngaphandle kwe-flashover ephukile; b. Itheminali eholayo yesivikeli esishisayo kanye nengaphezulu lomkhono we-insulating noma indawo engaphezulu yesivikelo esishisayo ingamelana ne-AC1500V, 50Hz eshintshanayo yamanje umzuzu ongu-1 ngaphandle kokuphuka kwe-flash;
Ukumelana ne-insulation:	Ngaphansi kwezimo ezijwayelekile, ukumelana nokufakwa kwe-insulation phakathi kocingo nomkhono wokuvikela kungaphezu kuka-100MQ. (Imitha esetshenzisiwe yi-DC500V imitha yokumelana nokufakwa)
Ukumelana nokuxhumana:	Ukumelana nokuxhumana kwesivikeli esishisayo akufanele kube kukhulu kuno-50mQ lapho abathintwayo bevaliwe.
Ukuhlolwa kokumelana nokushisa:	Umkhiqizo ubekwe endaweni engu-150"C amahora angama-96.
Ukuhlolwa kokumelana nokuswakama:	Umkhiqizo ubekwe endaweni engu-40C kanye nomswakama ohlobene no-95% amahora angu-48.
Ukuhlolwa kokushaqeka okushisayo:	Umkhiqizo ubekwe ngokushintshana ku-150°C kanye -20°C imizuzu engama-30 umunye, ingqikithi yemijikelezo emi-5.
Ukuhlolwa kwe-Anti-vibration:	Umkhiqizo ungamelana ne-amplitude engu-1.5mm, ukushintsha kwemvamisa okungu-10-55HZ, isikhathi sokushintsha ukuskena esingu-3-5min, nezikhombisi-ndlela zokudlidliza u-X, Y, Z, nokudlidliza okuqhubekayo amahora angu-2 ohlangothini ngalunye.
Drop test:	Umkhiqizo ukhululekile ukuwa kanye ukusuka ekuphakameni okungama-200mm.
Ukumelana nokucindezela:	Gxilisa umkhiqizo ethangini likawoyela elivaliwe, faka ingcindezi ye-2Mpa bese uyigcina amahora angama-24.

3 KW Thermal Protector Amanothi:

3.1 Izinga lokushisa lokutholwa kwezinga lokushisa lesenzo kufanele lilawulwe liye ku-1 °C/1min;

3.2 Igobolondo lokuvikela ngeke limelane nomthelela onamandla kanye nokucindezela ngesikhathi sokusetshenziswa.

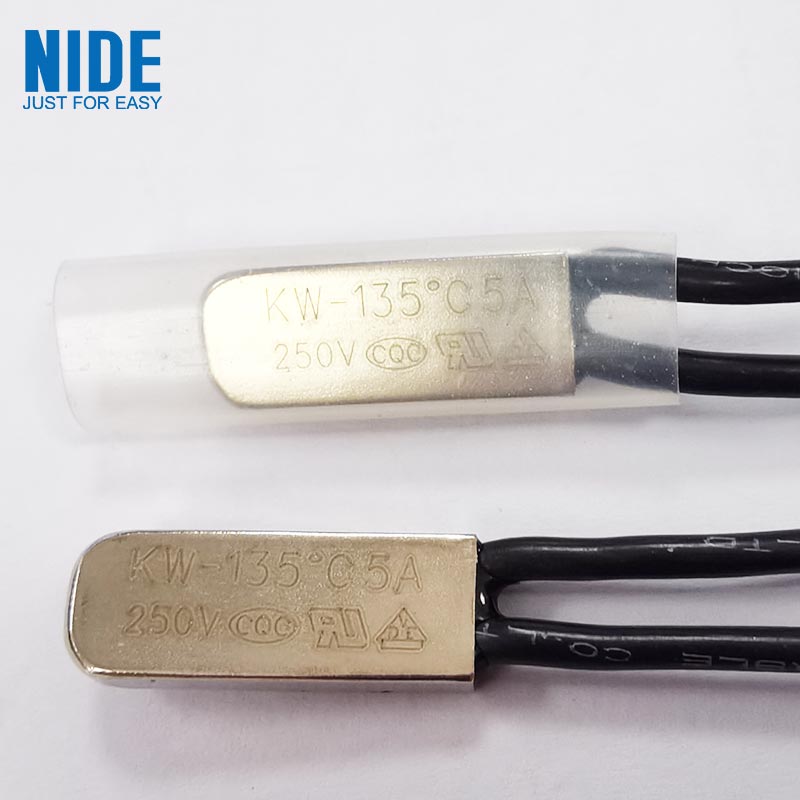

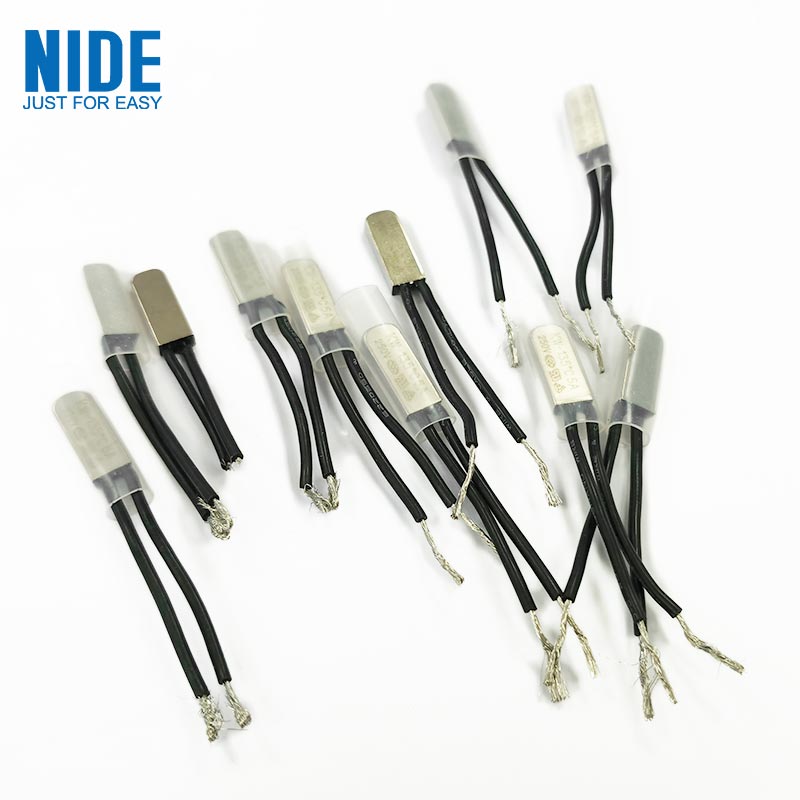

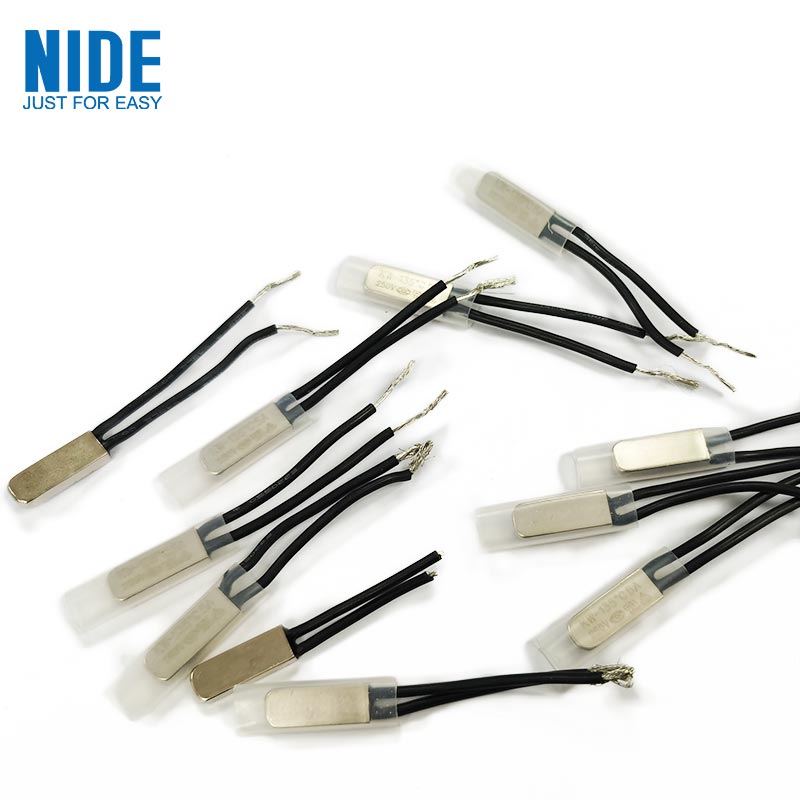

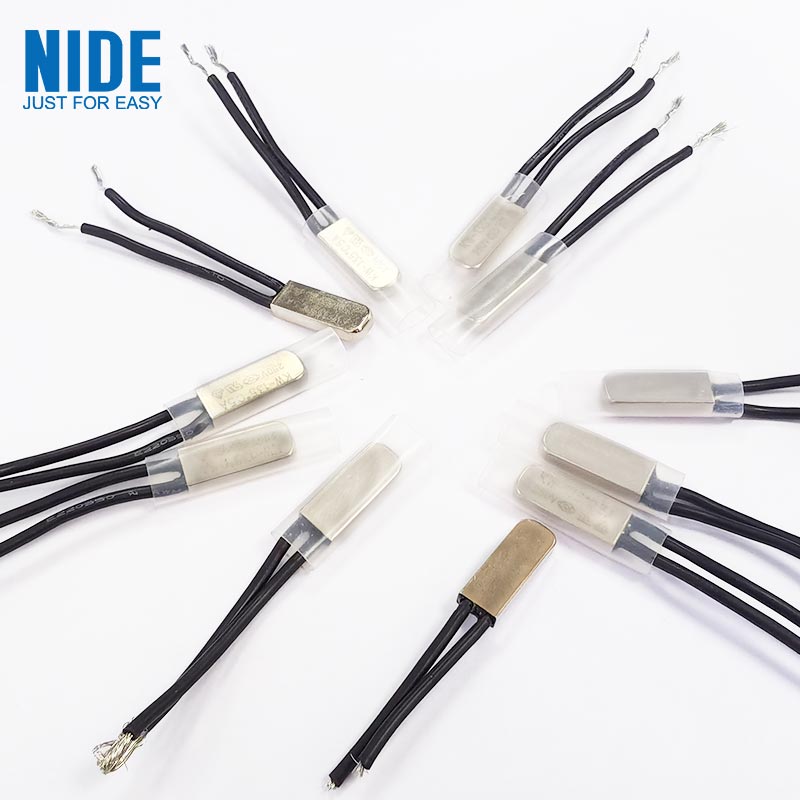

4. Isibonisi sesithombe somvikeli oshisayo we-KW

Isivikeli esishisayo esenziwe ngokwezifiso :

1. Intambo yokuhola eyenziwe ngokwezifiso: Izinto zocingo ezenziwe ngokwezifiso, ubude nombala ngokuya ngezidingo zekhasimende

2. Igobolondo lensimbi elenziwe ngokwezifiso: Enza ngendlela oyifisayo amagobolondo ezinto ezihlukahlukene ngokwezidingo zamakhasimende, okuhlanganisa amagobolondo epulasitiki, amagobolondo ensimbi, amagobolondo ensimbi engagqwali, namanye amagobolondo ensimbi.

3. Umkhono oncibilikayo oshisekayo owenziwe ngokwezifiso: Yenza ngokwezifiso imikhono ye-polyester ekwazi ukumelana nokushisa okuphezulu eshwabene ngokwezidingo zekhasimende
